scroll_transition

SwiftUI's .scrollTransition and .visualEffect for Flutter. List, grid and page items fade, scale, rotate, tilt in 3D, blur, slide or desaturate based on where they are in the scroll viewport. The effects are applied at paint time, so nothing is rebuilt while you scroll.

Solves flutter/flutter#128870 ("scrollTransition / visualEffect equivalent", marked would be a good package). The closest existing package, visual_effect, is experimental and has not been updated since 2023.

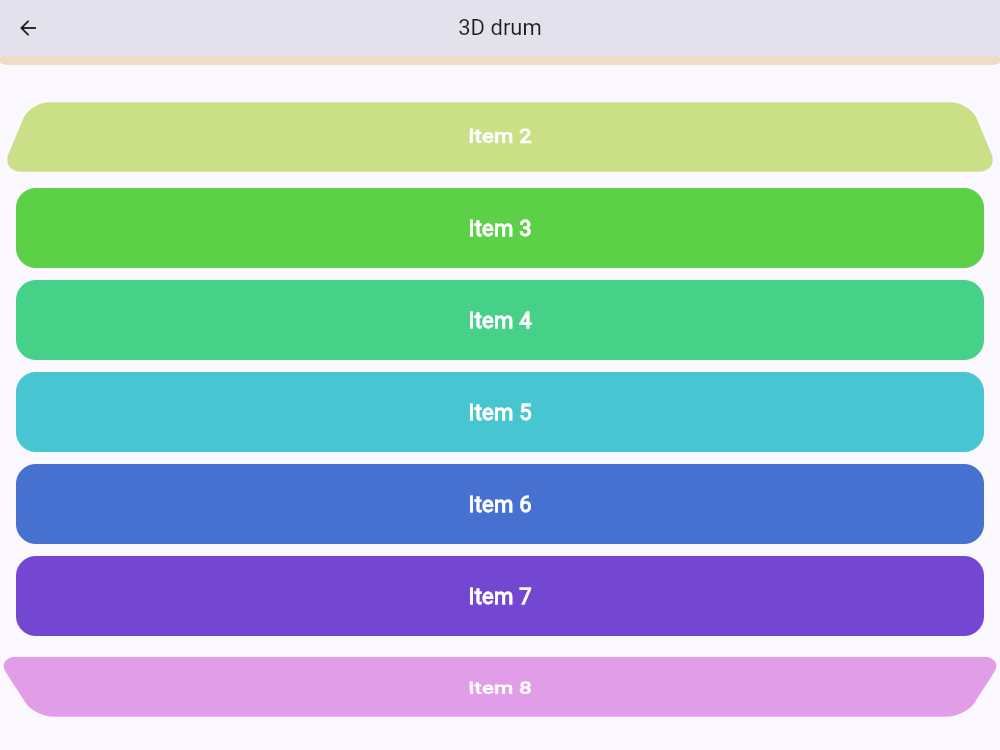

The 3D drum demo from example/: ScrollEffects.rotate3D().fade() tilts and fades each row as it nears the top and bottom edges of the viewport.

ListView.builder(
  itemBuilder: (context, i) => ScrollTransition(
    effect: ScrollEffects.fade().scale(0.8),
    child: Card(child: ListTile(title: Text('Item $i'))),
  ),
)

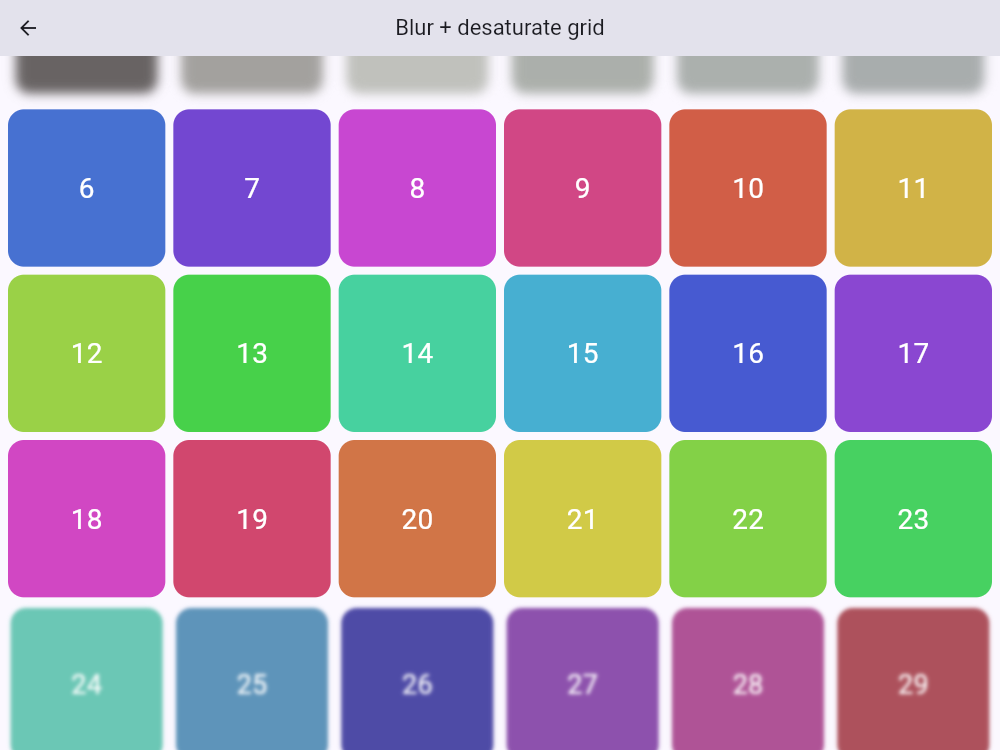

rotate3D().fade() on a ListView	blur(6).saturate(0) on a GridView

dependencies:
  scroll_transition: ^0.1.1

import 'package:scroll_transition/scroll_transition.dart';

Each ScrollTransition measures its own rect against the nearest scroll viewport every frame and turns it into a ScrollTransitionPhase:

Like SwiftUI, the edges are in screen space: "top" is the physical top, and "leading" is left in LTR and right in RTL. reverse: true does not flip them. topInset and bottomInset shrink the identity region, for example to fade items as they slide under a pinned header.

ScrollTransition(
  effect: ScrollEffects.fade(),              // opacity 1 -> 0
  child: tile,
)

ScrollEffects.scale(0.8)                     // 1 -> 0.8
ScrollEffects.rotate(math.pi / 12)           // 2D, opposite at each edge
ScrollEffects.rotate3D(angle: math.pi / 4)   // edge recedes like a drum
ScrollEffects.blur(8)                        // Gaussian sigma 0 -> 8
ScrollEffects.slide(48)                      // moves away from the centre
ScrollEffects.translate(Offset(80, 0))       // same direction at both edges
ScrollEffects.saturate(0)                    // towards greyscale
ScrollEffects.custom((phase) => VisualEffectValues(
  opacity: phase.isIdentity ? 1 : 0.4,
))

Chain them. Each chained method has the same name as its factory:

ScrollEffects.fade(0.2).scale(0.9).blur(4).slide(24)
ScrollEffects.fade().then(myOtherEffect)

// Default: follows the scroll continuously, optionally reshaped by a curve.
configuration: const ScrollTransitionConfiguration.interactive(curve: Curves.easeIn),

// Snaps between -1 / 0 / 1 once `threshold` of the item is visible,
// animating each change.
configuration: const ScrollTransitionConfiguration.animated(
  duration: Duration(milliseconds: 350),
  curve: Curves.easeOutBack,
  threshold: 0.5,
),

With .animated, an item that first appears below the threshold starts at its edge phase without animating, then animates in once it crosses the threshold.

ScrollTransition(
  builder: (context, child, phase) => Stack(children: [
    child!,
    Text(phase.kind.name),
  ]),
  child: const ExpensiveTile(),   // never rebuilt by the transition
)

The builder reruns only when the phase changes. Items fully inside the viewport are not rebuilt while scrolling. You can pass effect and builder together.

VisualEffect(
  effect: (g) {
    final d = g.centerOffset.clamp(-1.0, 1.0);   // -1..1 from viewport centre
    return VisualEffectValues(scale: 1 - 0.25 * d.abs(), rotationY: -0.6 * d);
  },
  child: card,
)

VisualEffectGeometry gives you rect (in viewport coordinates), viewportSize, axisDirection, textDirection, hasViewport, leadingOffset, visibleFraction, centerOffset and phase(...). VisualEffect(builder: (context, child, geometry) => ...) is the rebuild variant. Geometry changes on every scroll frame, so prefer effect:.

ListView, GridView, CustomScrollView slivers (including pinned SliverPersistentHeaders), PageView and SingleChildScrollView. They work vertical or horizontal, reverse: true, LTR or RTL, with keep-alive children and nested scrollables (the phase is always relative to the nearest scrollable). Outside any scrollable the phase is identity.

Pure Dart. No platform channels.

RenderVisualEffect (a RenderProxyBox) listens to the scroll position and marks itself for repaint, not rebuild or relayout, when the position changes. During paint it measures getTransformTo(viewport), resolves the effect and paints the child through reused transform, opacity, colour-filter and image-filter layers. Hit testing follows the painted transform.

The builder path predicts the new geometry the moment the scroll offset changes (before the frame builds), using the item's measured movement ratio. That way it rebuilds in the same frame, and the paint pass corrects any error.

• Builder mode, first appearance: an item painted for the first time (for example, scrolled in from the cache extent) is skipped for exactly one frame, so it is never shown with a stale phase. effect: mode has no such frame.
• Builder mode, pinned/floating content: until the item's movement ratio is learned (after its first scroll frame), the prediction can be one frame off. effect: mode is always exact.
• Moves without a scroll: if an item moves inside the viewport without the scroll offset changing and without being repainted (for example, a sibling above resizes while the item sits behind the list's RepaintBoundary), the phase updates on the next scroll or repaint.
• Two-dimensional scroll views: only the nearest scrollable's axis is considered.
• Blur cost: blur uses an image filter per item. Keep sigma modest in long lists on low-end devices.
• Effects are visual only. They never change layout, as in SwiftUI.

example/integration_test/visual_effects_test.dart launches the real example app (flutter test integration_test -d macos), scrolls five demos to known offsets, checks the painted opacity, scale, tilt, blur and carousel transforms against the measured phase, and saves in-app screenshots. The images in screenshots/ come from that run and from headless Chrome driving the web build.

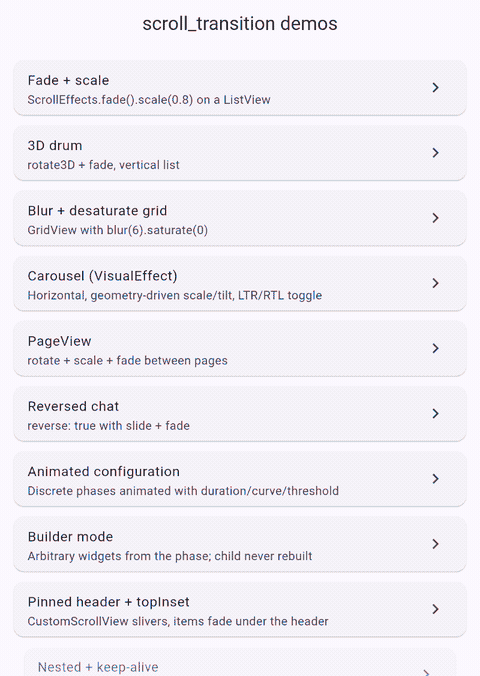

example/ has a catalogue covering fade and scale, a 3D drum, a blurred and desaturated grid, a VisualEffect carousel with an RTL toggle, a PageView, a reversed chat, the animated configuration, builder mode, a pinned header with topInset, nested rows with keep-alive, and a live geometry readout.

MIT © 2026 Manish Kumar Panday
